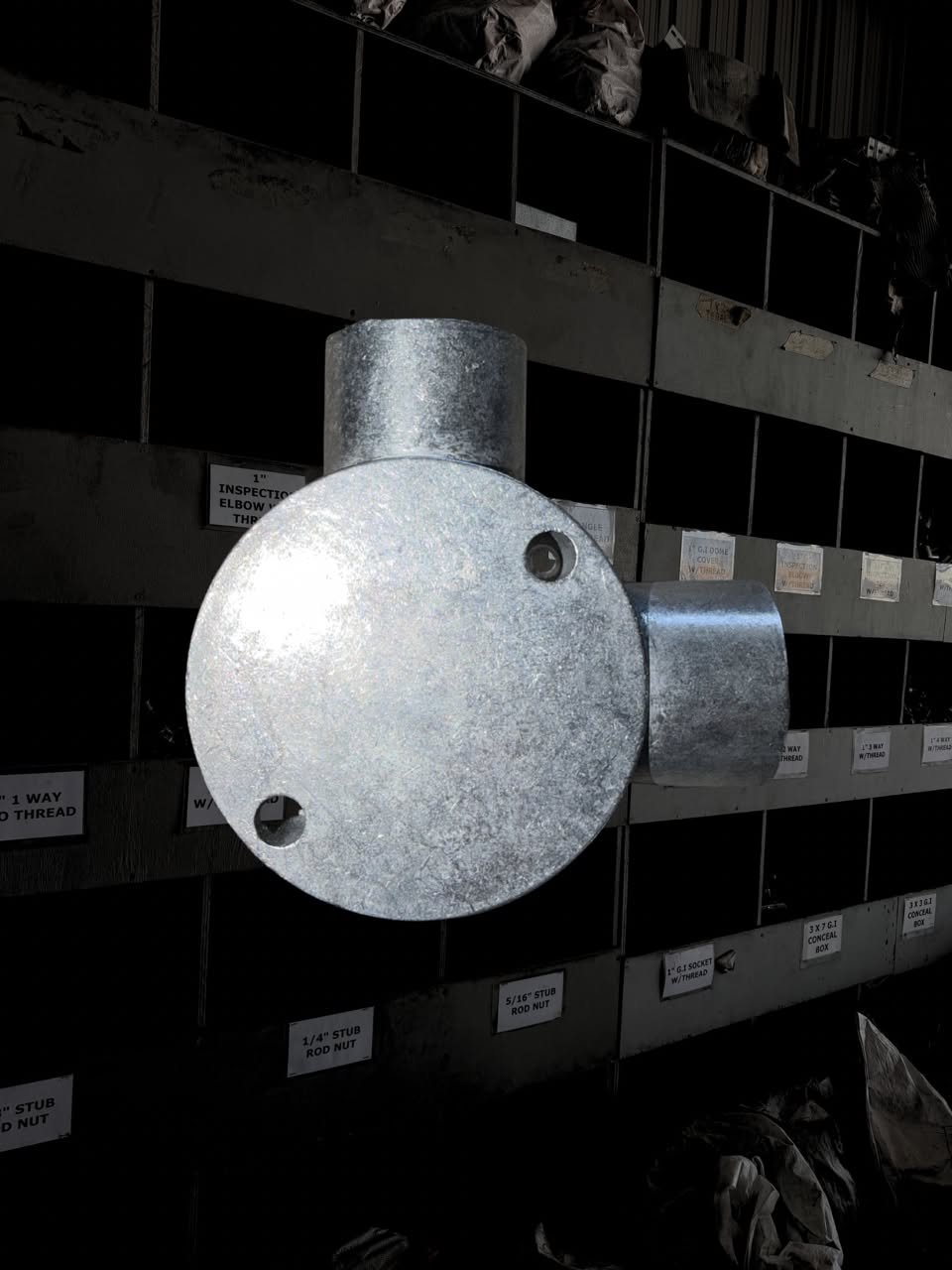

GI ANGLE BOX W/O or W THREAD SIZE: 1” or 3/4”
The GI (Galvanized Iron) Angle Box is a heavy-duty, right-angle conduit terminal junction box engineered for reliable electrical routing and directional cable management. Positioned at corner intersections where a conduit run changes direction while terminating or feeding into another circuit line, it provides a safe, accessible junction that shields electrical networks from mechanical impact, dust, and environmental wear.
Key Features
-
Right-Angle Entry Design: Specially engineered with openings positioned at a 90-degree angle, making it the perfect junction solution for neat corner routing along walls, beams, and structural pillars.
-
Removable Inspection Cover: Features a secure, bolt-on top plate that grants direct access to the interior chamber, allowing for effortless cable pulling, wire splicing, and routine maintenance checks.
-
Heavy-Duty Galvanized Finish: Hot-dip galvanized iron construction provides superior protection against rust, oxidation, and corrosive elements, making it ideal for both indoor and outdoor industrial environments.
-
Flexible Threading Options: Available in both Threaded configurations (for rigid, airtight screwed pipe connections) and Non-Threaded configurations (for quick slip-on, set-screw, or clamp assemblies).
-
Robust Mechanical Protection: The solid molded iron casing protects sensitive internal wiring connections against severe impact, heavy vibrations, and high thermal stresses.
Configuration Selection Guide
| Size & Thread Type | Standard Commercial & Industrial Applications |
| 3/4” (20mm) / Without Thread | Fast-assembly corner connections for standard commercial lighting circuits, workshop perimeter walls, and domestic surface-mount wiring. |
| 3/4” (20mm) / With Thread | Secure, moisture-resistant 90-degree junctions for small machinery feeds, outdoor perimeter security wiring, and utility rooms. |
| 1” (25mm) / Without Thread | High-capacity corner cable routing for main sub-panel runs, data center server arrays, and commercial distribution lines requiring quick slip-on fitting. |
| 1” (25mm) / With Thread | Heavy-duty, vibration-proof corner terminations for main industrial machinery, factory floor heavy trunking, and high-load primary power distribution. |
Specifications
-
Product Type: GI Angle Box (2-Way Right Angle Junction)
-
Available Sizes: 3/4” (20mm) / 1” (25mm)
-
Connection Types: With Thread / Without Thread (Plain)
-
Material: High-Grade Galvanized Iron (GI)
-
Access Type: Removable top-cover plate with twin-screw fastening
-
Application: 90-degree conduit circuit branching, wire splicing enclosure, and physical cable protection in commercial buildings, factories, and industrial infrastructure.
