GI 2 WAY BOX W/O or W THREAD SIZE: 1” or 3/4”

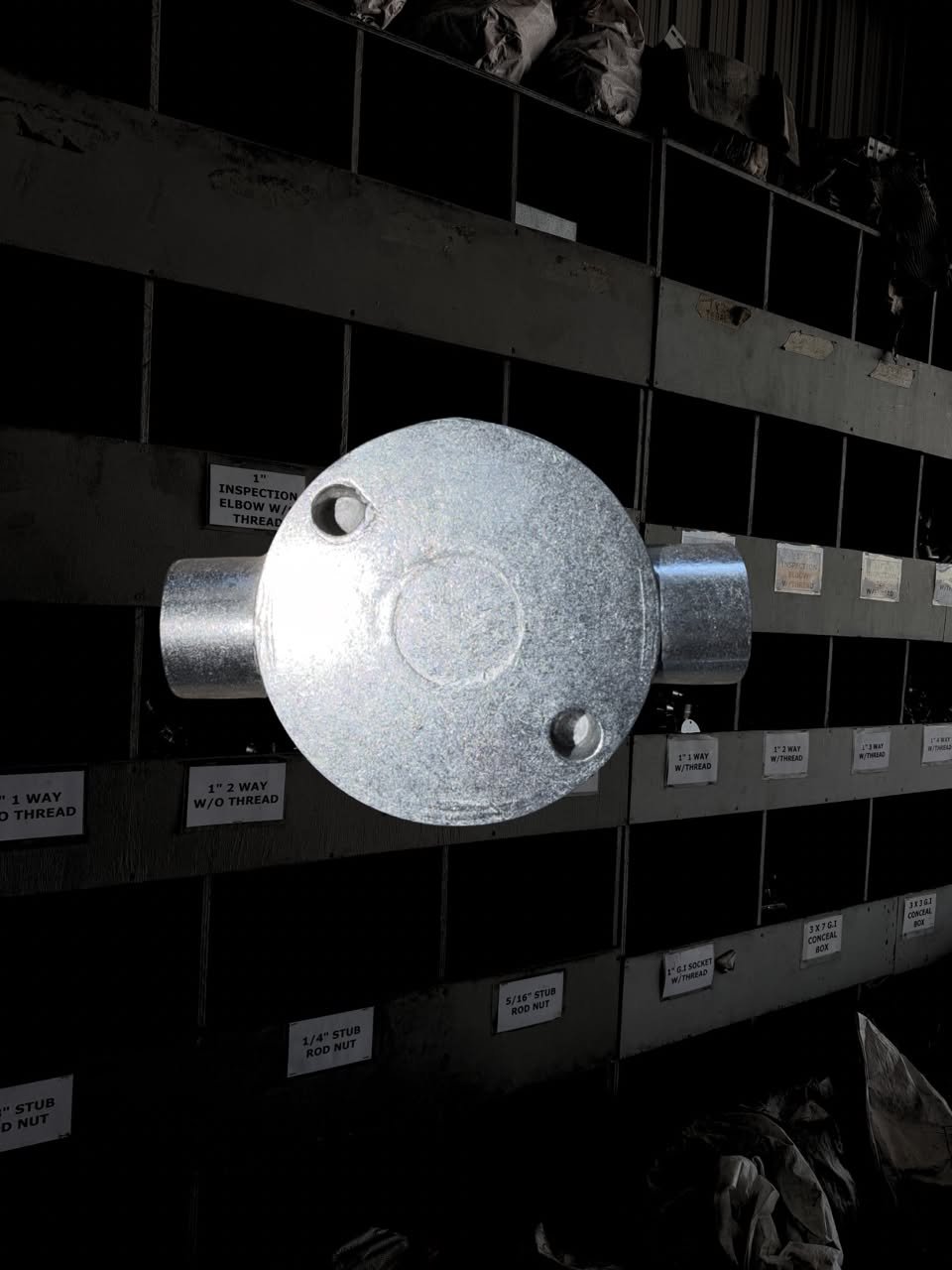

The GI (Galvanized Iron) 2-Way Box is a heavy-duty inline junction box engineered for straight-through electrical routing and mid-line cable containment. Positioned along continuous conduit runs within industrial, commercial, and domestic surface wiring layouts, it provides a safe, accessible enclosure for passing, splicing, or tapping into electrical circuits while shielding the network from mechanical damage, dust, and environmental wear.
Key Features
-
Straight-Through Through-Box Design: Features two precision-aligned openings positioned directly opposite each other (180-degree configuration), making it the ideal enclosure for extending straight conduit lines cleanly across walls and ceilings.
-
Removable Access Cover: Equipped with a secure, bolt-on top plate that grants direct access to the interior chamber, allowing for effortless cable pulling, wire splicing, and quick safety inspections.
-
Heavy-Duty Galvanized Finish: Hot-dip galvanized iron construction delivers exceptional resistance to rust, oxidation, and corrosive elements, ensuring long-term durability in both indoor and outdoor industrial environments.
-
Flexible Threading Options: Available in both Threaded configurations (for rigid, airtight screwed pipe joints) and Non-Threaded configurations (for quick slip-on, set-screw, or clamp assemblies).
-
Robust Mechanical Protection: The solid molded iron casing protects sensitive internal connections from severe mechanical shocks, high vibrations, and thermal stresses.
Configuration Selection Guide
| Size & Thread Type | Standard Commercial & Industrial Applications |
| 3/4” (20mm) / Without Thread | Fast-assembly inline loops for standard commercial lighting circuits, workshop perimeter wall-runs, and domestic surface-mount wiring networks. |
| 3/4” (20mm) / With Thread | Secure, moisture-resistant mid-points for small machinery power tracks, outdoor security corridors, and utility room piping lines. |
| 1” (25mm) / Without Thread | High-capacity inline enclosure for main sub-panel runs, data center server array power tracks, and commercial distribution lines requiring quick slip-on assembly. |
| 1” (25mm) / With Thread | Heavy-duty, vibration-proof straight intersections for main industrial machinery inputs, factory floor heavy trunking, and high-load primary power distribution lines. |
Specifications
-
Product Type: GI 2-Way Box (Through/Inline Junction Box)
-
Available Sizes: 3/4” (20mm) / 1” (25mm)
-
Connection Types: With Thread / Without Thread (Plain)
-
Material: High-Grade Galvanized Iron (GI)
-
Access Type: Removable top-cover plate with twin-screw fastening
-
Application: Continuous conduit line extension, straight-line wire splicing enclosure, and physical device/cable protection in commercial buildings, factories, and industrial infrastructure.
